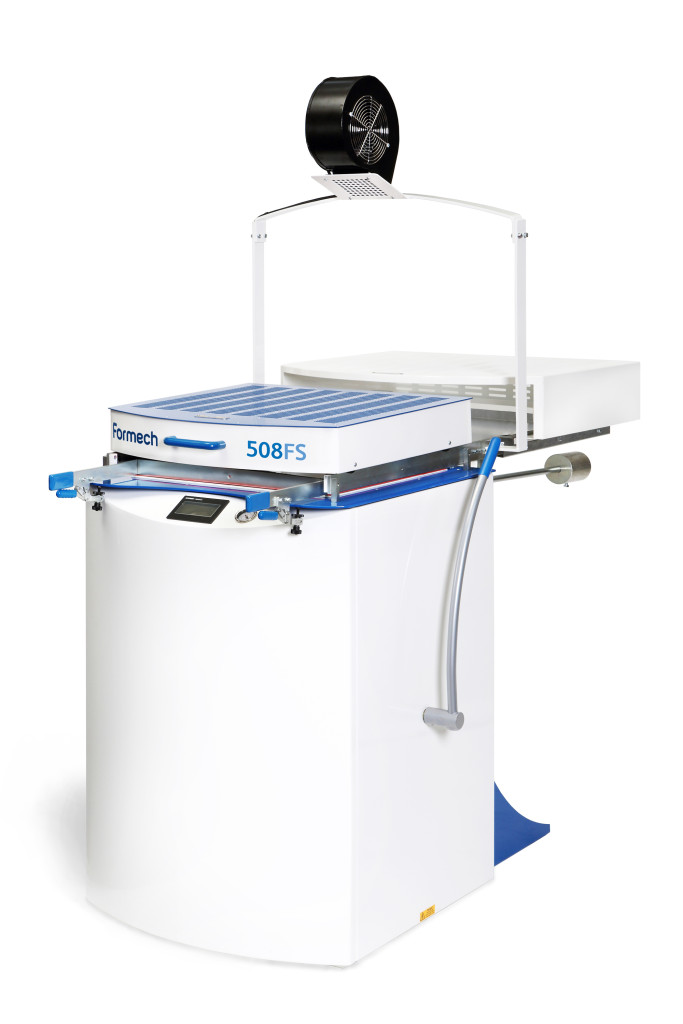

508FS

Formech’s 508FS (Floor-Standing) machine offers significant advantages over the desktop series with pre-stretch, auto-level and a much more powerful flow rate for demanding applications.

Intuitive, graphically driven touch-screen control with memory function makes the 508FS very easy to use, whilst powerful forming capabilities provide extensive project versatility. Higher wattage Quartz heaters (vs. 508DT) further enhance the 508FS capability.

Take a look at our other Compact Floor Standing products

686

FMDH660

---

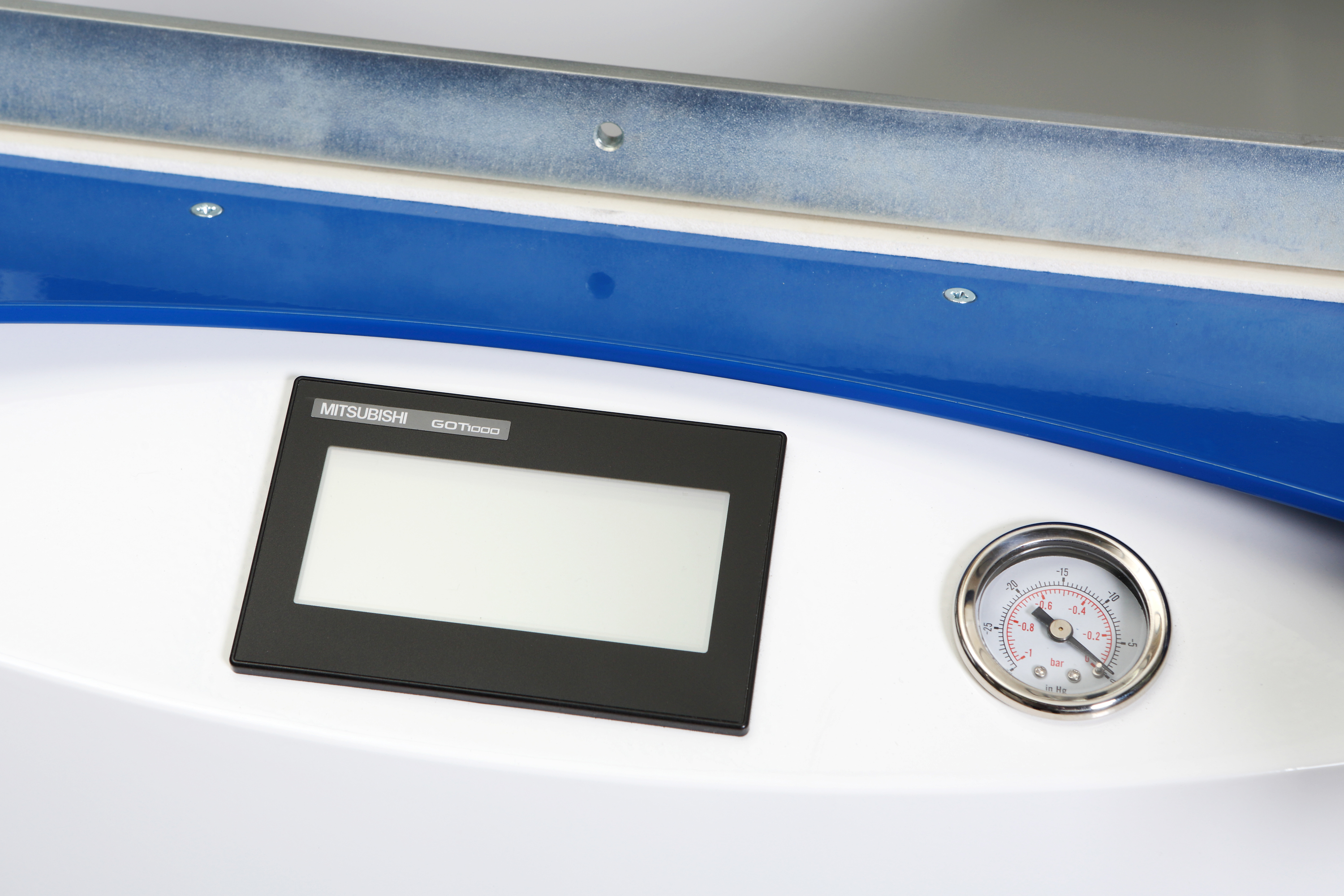

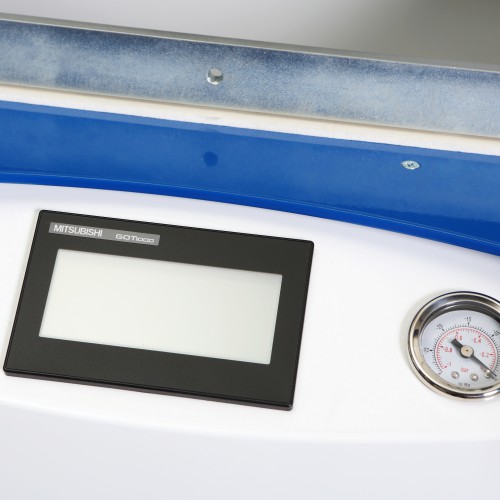

4" Mono HMI /PLC Interface with Memory Function

Mitsubishi integrated PLC/HMI with 4" mono touch screen control and 20 programmable presets.

Pre-Stretch

Pre-stretch enables the user to pump air into the heated sheet, creating a bubble to avoid thinning of material with deeper tools.

Auto-Level

Avoids material sag during the heating cycle and maintains an even distance between heater and sheet whilst providing the user with an audible indication the material is ready to form.

Quartz Heaters with Variable Standby

Quartz heaters have the benefit of a rapid response and high efficiency resulting in time and energy savings.

4 Independently Controllable Heating Zones

Four heating zones and quartz heaters provide rapid heat response with a greater range of control to form challenging shapes and materials

Vacuum & Release

After the formed part has cooled, air is forced between the mould and the sheet to help it release.

Vacuum Gauge

A visual indication of consistent vacuum pressure being applied (pressure in Hg / bar).

Dry rotary vane pump 10m3 / hr

Oil free and requires minimal maintenance

Forming area (mm/inches)

482 x 432mm / 19 x 17"

Sheet Size (mm/inches)

508 x 457mm / 20 x 18"

Max depth of draw

290mm / 11.5"

Max Material Thickness

6mm / 0.25"

Heating Zones

4

Heater type

Quartz

Width

757mm / 29.8"

Height

1140mm / 44.9"

Depth

1474mm / 58"

Weight

125kg / 275lbs

Single Phase Power Requirements

208-240V/20A

Europe - 3 Phase Power Requirements

N/A

USA - 3 Phase Power Requirements

N/A

Power Consumption

4.22kW

Air Requirements

80 PSI/5 bar

Reducing Windows

Reduces forming area to utilise smaller sheets of material and minimise wastage. Standard or custom size.

Cooling Fan System

To cool formed material and shorten cycles times.

Reel Feed Unit

Assembly to hold reel materials. Suitable for the Formech 450DT, 508DT, 508FS and 686.

Starter Pack of Plastic

Assortment of material (HIPS, ABS, PETG) cut to size to fit your Formech vacuum forming machine

Mobility with Castors

6 locking wheels allow you to safely move the machine from one area to another.

Vacuum Receiver Tank

A vacuum tank that provides instant stored vacuum, for high demanding materials and shortening cycle times.

Spare parts kit

A consumable parts kit typically including seals, elements, filter, fuses, toggle clamps.

Featured Customers

• University of Rochester (Education – USA)
• ETH Zurich (Education - Switzerland)
• KTH (Education – Sweden)
• University of the Arts London (Education – UK)
• University of Teeside (Education – UK)
• Universzita Tomase Bati ve Zline (Education – Czech Republic)
• Universidade do Minho (Education – Portugal)
• Tourbillon Patisserie (Chocolatier – France)
• Sodebo (Chocolatier – France)
• Harmac Medical Products (Medical – USA)
• Serco (Defence R&D – UK)
• Apple Inc (Prototyping/R&D – USA)
• Cyberdroid (Prototyping / R&D / Robotics - France)
• Ligier Group (Automative - France)
• Automative Amiens (Automotive - France)
• University of Nottingham (Education - UK)
• PT Kawan Lama Sejahtera (Education - Indonesia)
• Airborn Interconnect, Inc (Electronics - USA)
• Fusion Optix (Optical Solutions - USA)
• Gen Pak (Package Prototype - USA)
• Airborn (Packaging - USA)
• LWB Steinl GmbH & Co KG (Plastic Sheet Extrusion - USA)
• Blackhawk Industrial (R&D - USA)
• Isosport Verbundbauteile GmbH (Sport Products - Austria)
• Riverside Tool Corps (Toolmakers - USA)
• School of Visual Arts NY (Education - USA)
• OTIS (Education - USA)

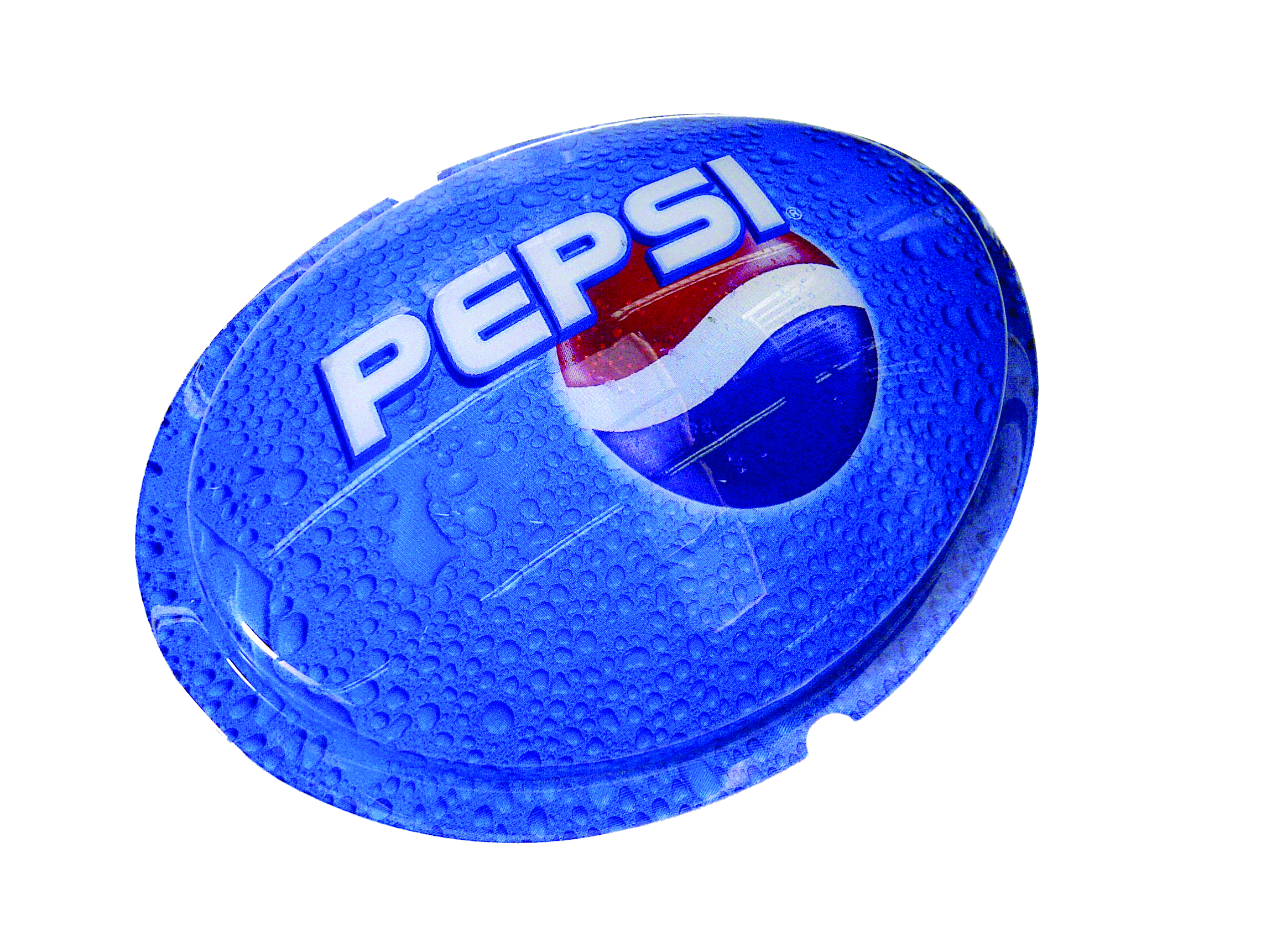

Pre-printed POS PETG



 Decorative Panels

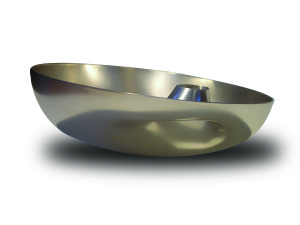

Electro Silver Plated Sculpture PETG

Decorative Panels

Car Body Shell – Polycarbonate
